Product introduction:

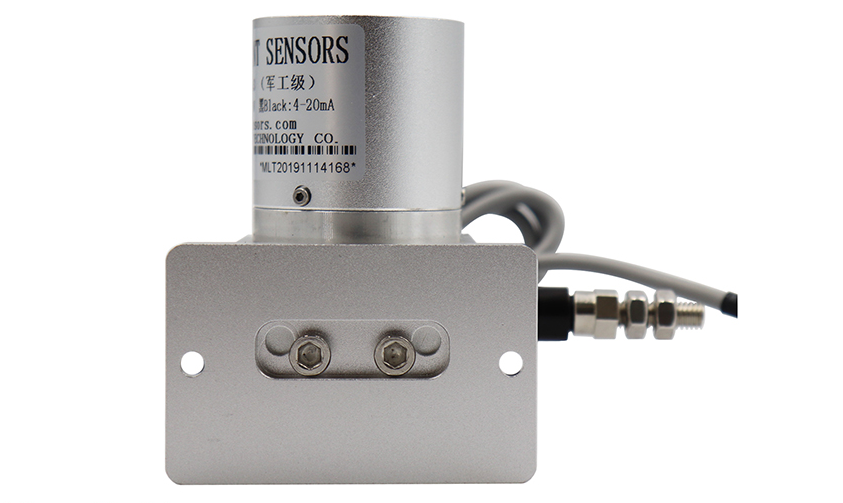

MLT cable?displacement sensor, range of 500~1200mm, military grade, sensor output signal types include: resistance output, voltage output (0-5V;0-10V), current output (4-20mA, two-wire or three-wire system).The sensor has the advantages of small size, high precision, easy installation and use. It is specially used for machine tools and equipment, and can also be used for other special occasions.
Performance parameter：
Range: 500-1200mm
Linear accuracy: ±0.15%FS
Repeatability accuracy: ±0.02%FS
Resolution: infinite?no broken parsing
Maximum allowable working voltage: 24V DC
Output signal: resistance output（0-5KΩ）; Voltage signal (0-5V, 0-10V); Current signal (4-20mA)
Sensor type: wire wound hybrid potentiometer (encoder)
Maximum working speed: 1m / S
Temperature range: - 55?℃ to + 125?℃
Service life: 5 million times
Traction: 250±25g
Wire diameter: 0.8mm
Protection grade: IP65
Maximum mass: 450g
Application area：
MLT cable displacement sensor is specially used for machine tools and equipment, and can also be extended to measure and locate the displacement of mechanical equipment such as storage position positioning, gate opening control, pressure machinery, paper machinery, textile machinery, packaging machinery, brush lifting machinery, construction machinery, woodworking machinery, hydraulic press, etc.
